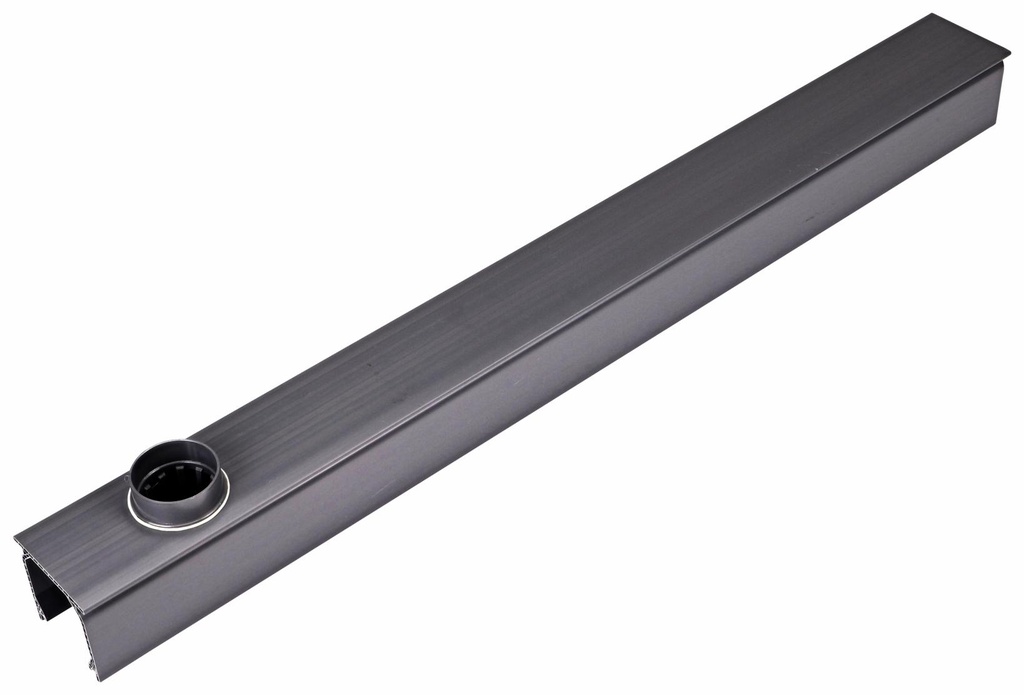

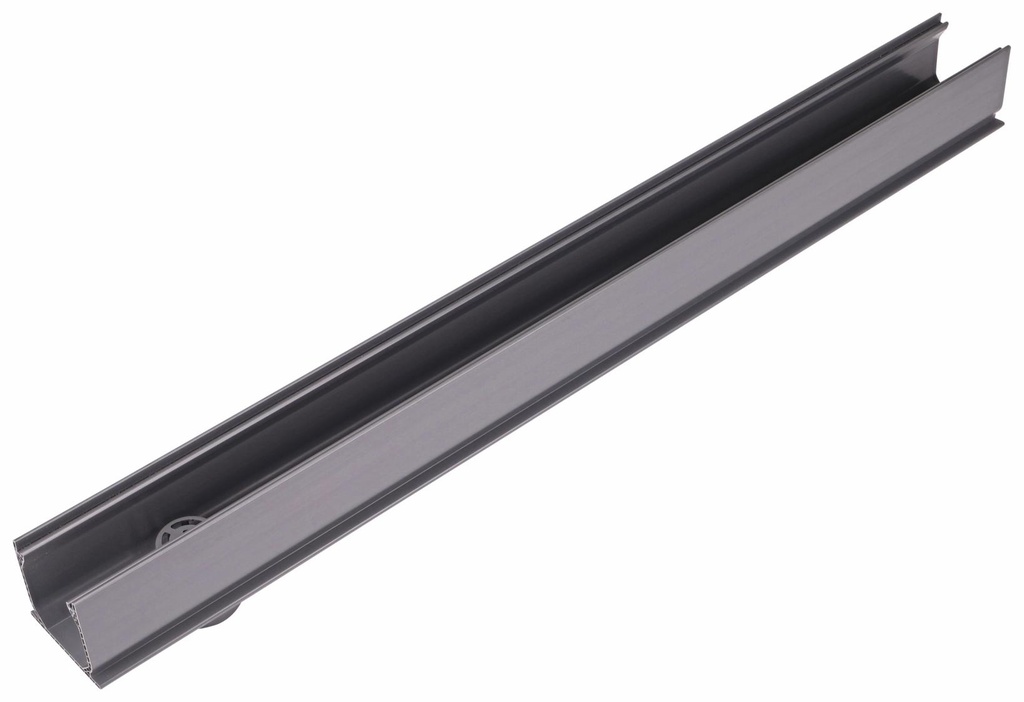

Collect and direct stormwater to drain pipe with the Mini Channel™ Drain Bottom Outlet. The 3 ft. long channel drain features an integrated bottom outlet that connects to 2 in. Sch. 40 pipe fittings. Fits one 3 ft. Mini Channel Drain Grate or three 1 ft. Mini Channel Drain Grates on top.
The Mini Channel Drain Bottom Outlet is made of polyvinyl chloride (PVC) treated with UV inhibitors. Mini Channels are part of the NDS Profile Channel series, and ideal for capturing light water flows from pool and spa areas, concrete and paver patios, tennis courts, walkways, and driveways. Hassle-free limited lifetime warranty guarantees the NDS product is free from defects—or we’ll replace it.
Get scalable stormwater management solutions for residential, commercial, and industrial applications at NDS. Free tools and calculators, store locator, and support available on the NDS website and NDS Drain mobile app. Whether you’re a homeowner, contractor, specifier, or distributor, we’re here to help make your project a success.
Connects to Mini Channel Drain system with coupling; use solvent-weld PVC glue to create a water-tight connection | Comes with one Mini Channel Drain Bottom Outlet which features 3 ft. channel drain and bottom outlet as one integrated part | Install Mini Channel Drain Bottom Outlet anywhere along the channel run to outlet water to drain pipe | Use with the Mini Channel Drain system, part of the NDS Profile Channel series | Fits Mini Channel Drain Grate(s) on top | The Mini Channel Drain system collects light flows of water from pool & spa areas, concrete & paver patios, tennis courts, walkways, and driveways, and directs it to drain pipes for proper release downstream | Channel is 3 ft. long with integrated bottom outlet
Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS3a1dde79-8847-4af2-806c-dac7ded0ad5e | Manufacturer Product Page: https://www.ndspro.com/us/en/product/drainage/channel-and-trench-drains-and-grates/550-mini-channel-drain-bottom-outlet-4-1-2-in-x-3-ft-connects-to-2-in-drain-fittings | Manufacturer Web Site: http://www.ndspro.com
