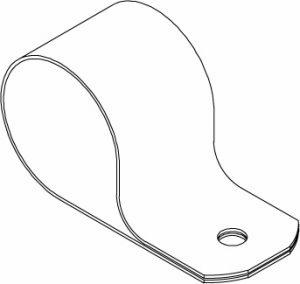

1 CPVC GALVANIZED PIPE STRAP #075

Designed to support CPVC pipe horizontally from the side of a beam. Fig. 075 must be installed with the mounting tab oriented over top of piping on the side of a beam. Fig. 075 can only be used as a guide on top of beam or on vertical piping. Fig. 075 may be installed onto wood using supplied fasteners or into, minimum 20 gauge, steel using one 1/4” X 1” tek type screw (not included). Features flared edges to protect piping as it slides through the installed fitting.
