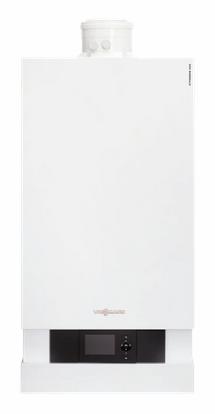

B2HA 530 Vitodens 200-W (103-495 BTU Output) 92.5%EFF 1" GAS; 2" HTG SPLY/RTN 110/150MM COAX OR 4'' PPS,
SKU: 6507029
Gas-/propane-fired wall-mounted condensing boiler with Vitotronic 200 HO1B digital outdoor reset boiler control. Vitodens 200-W Model No.: B2HA 530. Input: 113-530 MBH / 33-155 kW, Output: 103-495 MBH / 30-145 kW. CSA Efficiency 93.5%. Product dimensions: L 27" / 698 mm, W 23-5/8" / 600 mm, H 44-1/2" / 1128 mm. Boiler vent connection: 110/150. Boiler PRV: 60 psig. Boiler water adjustable high limit (AHL) range: 68-180ºF / 20-82ºC. Standard Equipment: Wall-mount boiler, Vitotronic 200 HO1B, and installation fittings c/w 60 psig pressure relief valve, temperature sensors (outdoor, LLH, and DHW), gas shut-off valve, two fill/drain valves, and mounting hardware. B2HA 530 also includes low gas pressure switch kit. Boiler is suitable for operation with a balanced flue. Please use a certified Category IV vent system of PP(s), stainless steel or CPVC.
Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS8840d172-3bdd-4c1f-aa47-a8f7ecc6a5b1 | Manufacturer Web Site: http://www.viessmann.ca
