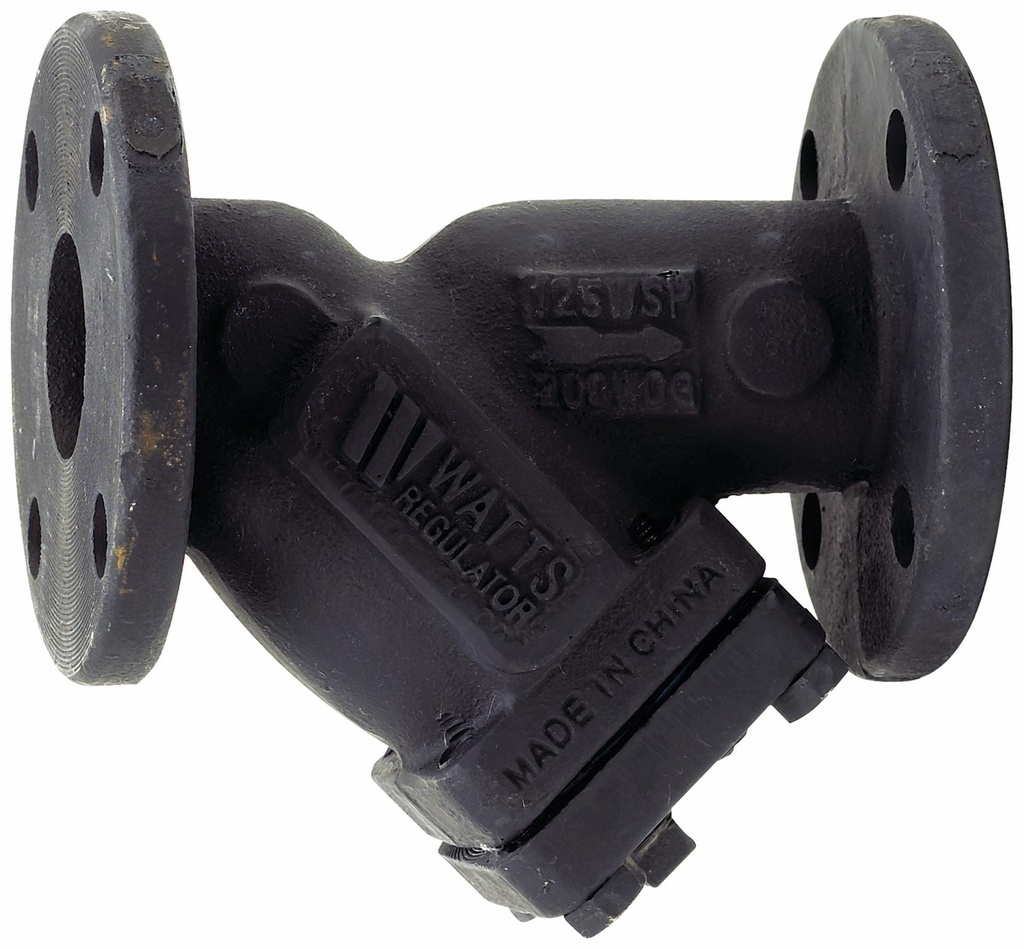

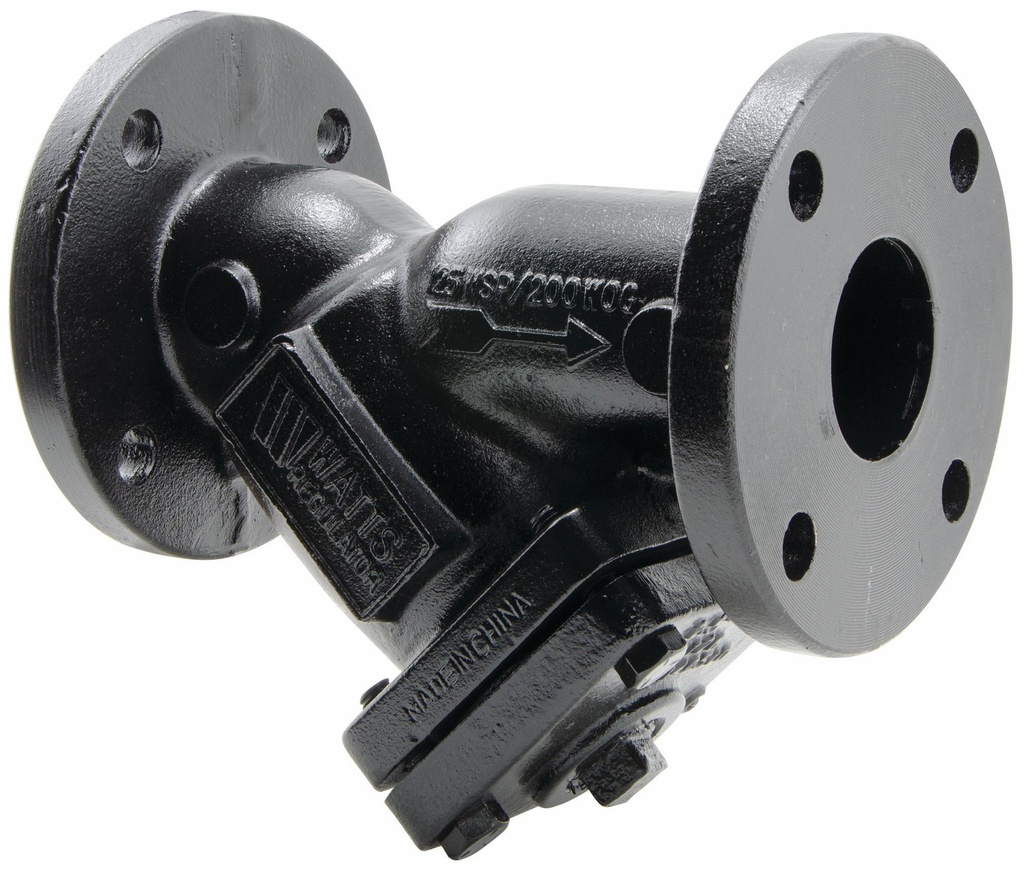

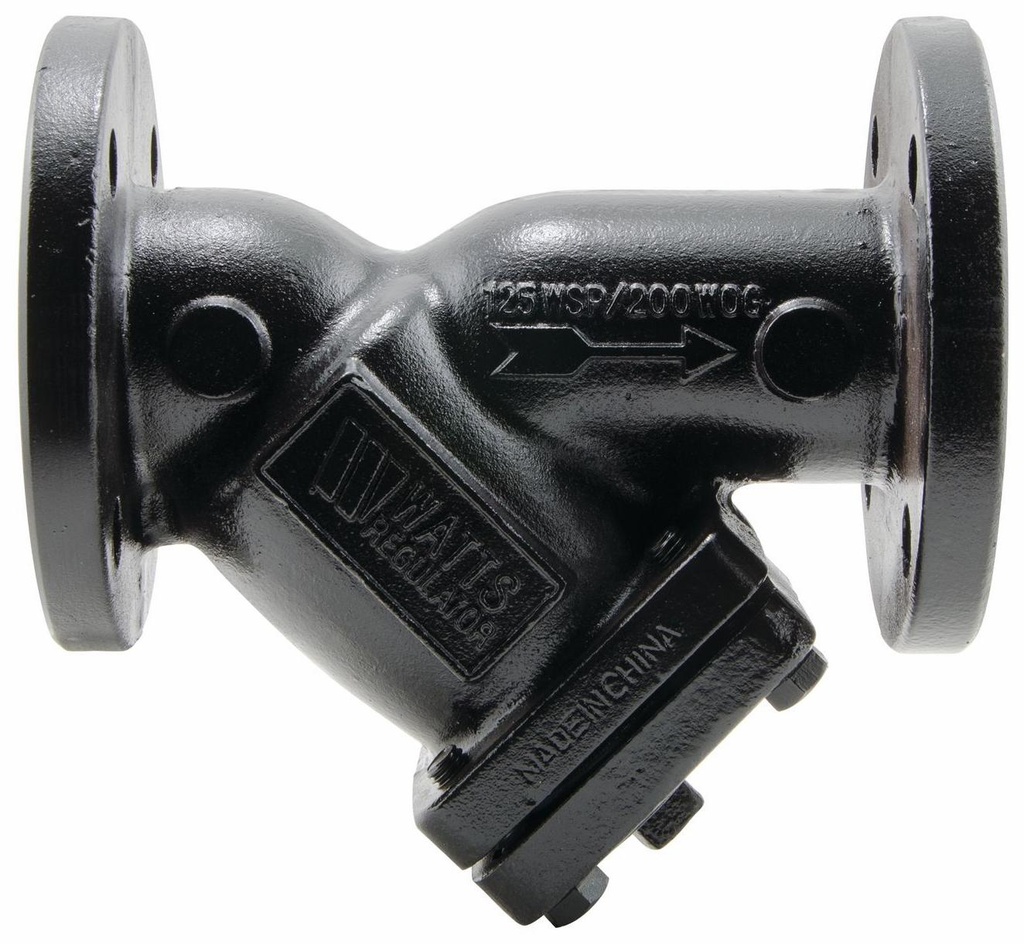

This cast iron flanged wye pattern strainer 2 1/2 inch Watts model 77F-DI-125, has lead free class B cast iron body with 1/16 inch perforated screen, class 125 flanged connections, cast iron blowdown plug, stainless steel perforated screen, bolted and tapped iron retainer cap with graphite gasket and drain/blowoff connection furnished with a closure plug. Applicable for liquid and steam service to protect check valves, backflow preventers and similar controls from foreign matter. Maximum Pressure (non-shock) 200 psi (13.8 bar) at 210 degree F (99 degree C) WOG, 125 psi (8.6 bar) at 353 degree F (178 degree C) WSP.
Flanged | Wye pattern | 304 stainless steel perforated screens | Cast iron body
Manufacturer Web Site (French): https://fr.watts.ca | Manufacturer Web Site: https://www.watts.ca | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS003bce4e-fd26-4361-9868-037841bc80fb | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS50562f57-247d-4b69-b421-5dfcaf078a12 | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSfe7ec0f9-bc5a-412b-9ccd-4181b836399f | Installation Manual (French): https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS97bc6818-ec6a-4c79-804a-6812532e6dee | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS942ba8bf-4d25-45c4-bd37-7e0aa107f025 | Warranty: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS3ee08640-cf9b-4aba-8499-69c3d83dc6a9 | Manufacturer Web Site: http://www.wattscanada.ca
