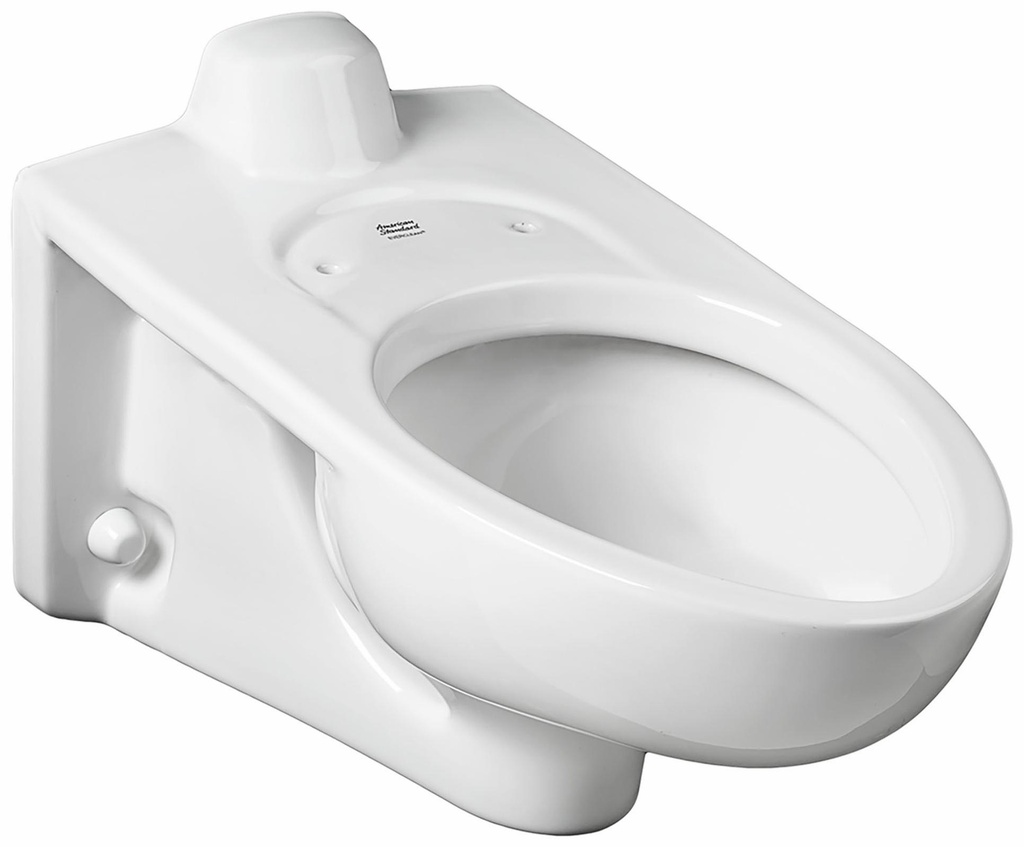

Afwall Wall Hung Elongated Toilet Bowl (Less Seat)
SKU: 1309013
Introducing the new Afwall® Millennium™ FloWise® wall-hung toilet line from American Standard. Our reliable and dependable wall-hung toilet is now even better and more powerful with a premier flushing performance at lower flush volume, increased static weight load capacity, and streamlined design. High Efficiency, Low Consumption. Meets definition of HET (High Efficiency Toilet) when used with a high efficiency flush valve (1.1 gpf -1.6 gpf or 1.28/1.1 gpf dual flush). 10" x 12" water surface area. 100% factory flush tested System. MaP Score: - 1,000 grams of miso @ 1.1 gpf to 1.6 gpf when used with an American Standard flush valve - Maximum Performance (MaP) testing performed by IAPMO R&T Lab. MaP Report conducted by Veritec Consulting, Inc.and Koeller and Company. Nominal Dimensions: 660 x 356 x 381 mm (26" x 14" x 15"). Recommended working pressure– between 25 psi at valve when flushing and 80 psi static. Fixture only, less seat, bolt caps, and flushometer valve. Compliance Certifications - Meets or Exceeds the Following Specifications:- ASME A112.19.2/CSA B45.1 for Vitreous China Fixtures. This product is not recommended for bariatric use.
Colour:White | Commercial Grade:Yes | EverClean™ Surface:Yes | WaterSense® Certified:Yes | Water Efficient:Yes | Type:Commercial Fixtures | Mounting:Wall Mounted | Installation:Elongated | Lead Law Compliant: N/A | EverClean® Antimicrobial Surface inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface | EverClean™ Antimicrobial Surface inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface | High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf) | Maximum Performance (MaP) score of 1,000 grams at 1.1 – 1.6 gpf | Wall-hung elongated flushometer bowl, less seat | Concealed trapway design with condensation channel | 1-1/2" (38 mm) inlet spud | 2-1/8" (54 mm) fully-glazed trapway – 2" (51 mm) minimum ballpass | Vitreous china | Direct-fed siphon jet flush action | Static weight load of 1,000 lbs (453 kg). Not recommnded for bariatric use. | Static weight load of 1,000 lbs (453 kg). Not recommended for bariatric use.
Manufacturer Web Site: https://www.americanstandard.ca/ | Installation Manual (French): https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS621ec6d8-005c-4796-be9b-fbe0c2363f5f | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS7350e821-de32-4a22-a7c0-72713b7b56b1 | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS5fcb6fdf-047d-4fc0-98dc-b47d53fd6ecc | Manufacturer Product Page: http:///products/afwall-r-millennium-r-1-1-1-6-gpf-4-2-6-0-lpf-back-spud-elongated-wall-hung-everclean-r-bowl
