25MGMSPDT
SKU: 1549924

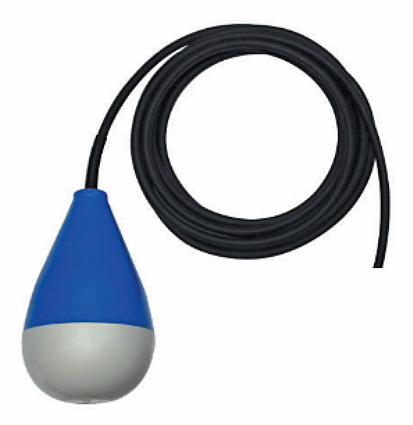

The SJE MegaMaster® is a mechanically-activated, narrow-angle, internally weighted float switch designed for level control in municipal sewage pumping stations. The internal switching mechanism contains unique gold cross-point contacts, providing precision and reliable control signals up to 1 amp. The SJE MegaMaster® control switch can be wired to work in either normally open or normally closed applications. It is not sensitive to rotation. Normally Open Models (high level): The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level and turns off (opens) when the float drops slightly below horizontal. Normally Closed Models (low levels): The control switch turns on (closes) when the float tips slightly below horizontal signaling a low level and turns off (opens) when the float tips slightly above horizontal.
Two-color housing allows for easy identification of float position | 3 wire cable – SPDT (Single Pole, Double Throw) can be wired as normally open or normally closed. Wire color: Common (white), N.O. (black), N.C. (red) | Unique gold cross-point contacts provide precision and reliable control signals up to 1 amp | Large twin wall tear drop shape design offers increased buoyancy | Internally weighted | Excellent solution for applications with high grease content
Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS07df46b0-b4c5-474d-a2ef-a1dcd032693f | Manufacturer Product Page: https://www.sjerhombus.com/products/sje-megamaster/ | Manufacturer Web Site: https://www.sjerhombus.com/ | Manufacturer Web Site: http://www.sjerhombus.com/support_options/troubleshooting
