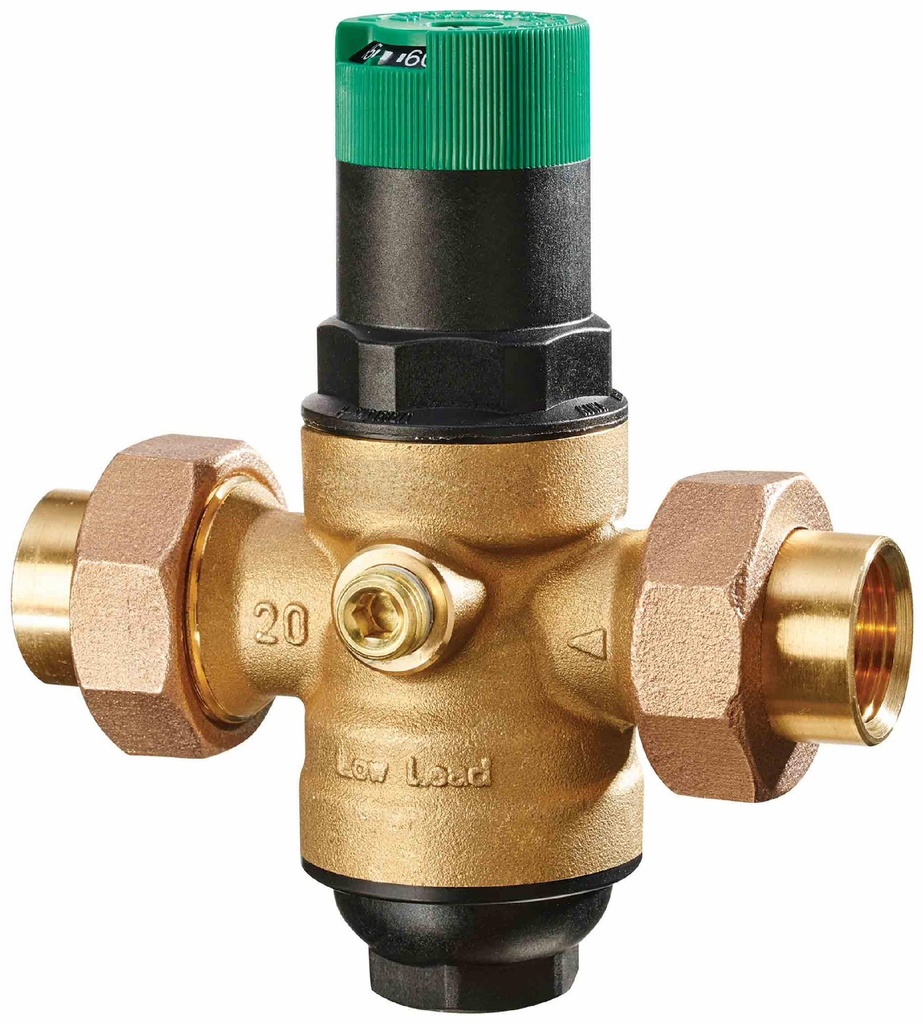

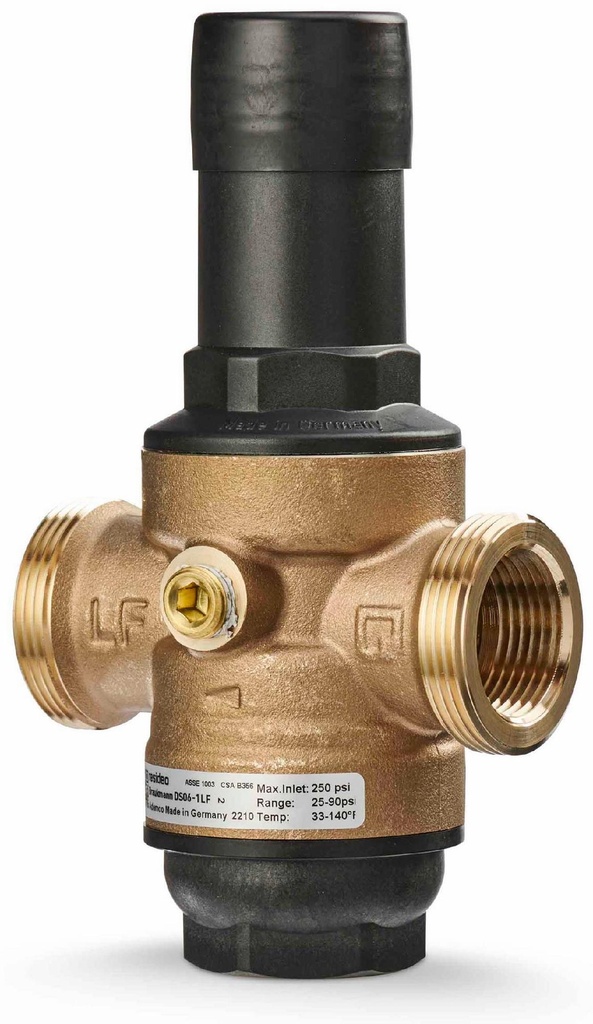

The Honeywell DS06 Dial Set Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only). Honeywell Dial Set® Pressure Regulating Valve, Low Lead, 3/4 in Nominal Size, FNPT, 250 psi, 140 deg F, Bronze Body, 5-53/64 in H x 3-35/64 in L
Built-in dial-set no gauge is needed to install or set static pressure | Fabric reinforced diaphragm | Stainless steel and engineered plastics internal parts | Outlet adjustment range of 25 psi to 90 psi make it suitable for household, commercial industrial and turf-and-irrigation applications | Install it just about anywhere | Balanced single seat construction | Built-in strainer to simplify maintenance | Non-corroding Unitized cartridge - contains all working parts and is easily replaceable | 25 to 90 psi reduced pressure | The wettable surfaces of lead free models contain less than 0.25% of lead by weighted average | Standard/Approvals: ASSE 1003, CSA, IAPMO Low Lead Compliant | Factory set at 60 psi (414 kPa) outlet pressure | The internal and external threading allows for use in thread-by-thread single union or double-union configurations | 1/4 in NPT tap accessible from both sides to validate output
Brochure: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS08bb2565-b361-4de8-929f-7ad43e76cc8e | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSf3aedc6b-5b22-4c07-8a6e-66d26196a4cf | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS6095b49a-9b72-4142-ab18-a1e4e87b3f98
