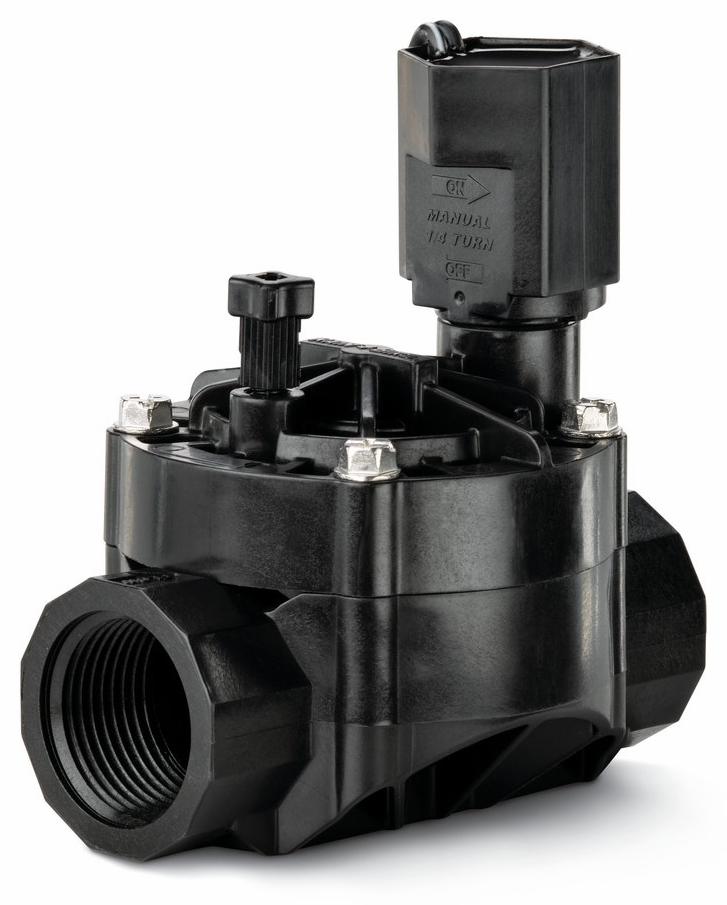

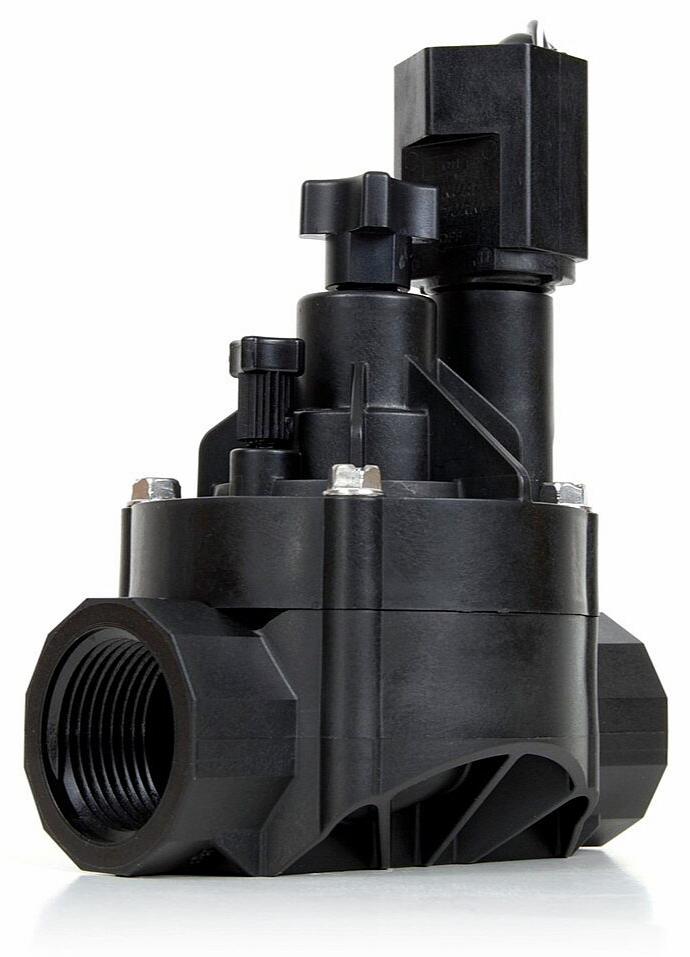

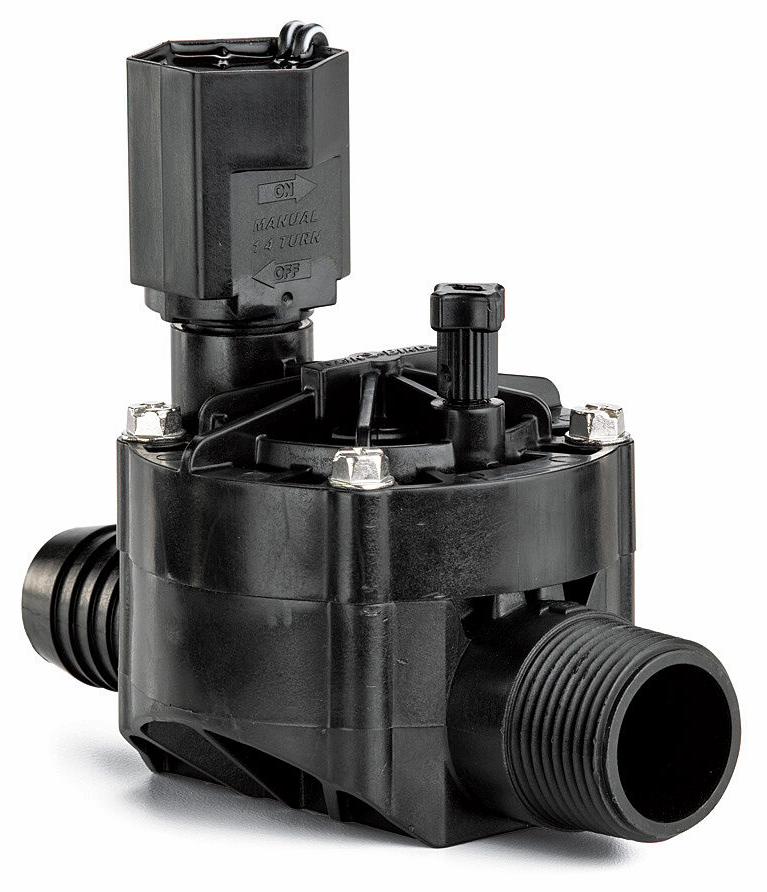

Rain Bird 100HVNPT In-Line Sprinkler Valve, 1 Inch, FNPT, 0.2 - 30 gpm Flow, Water Media, Solenoid Actuator

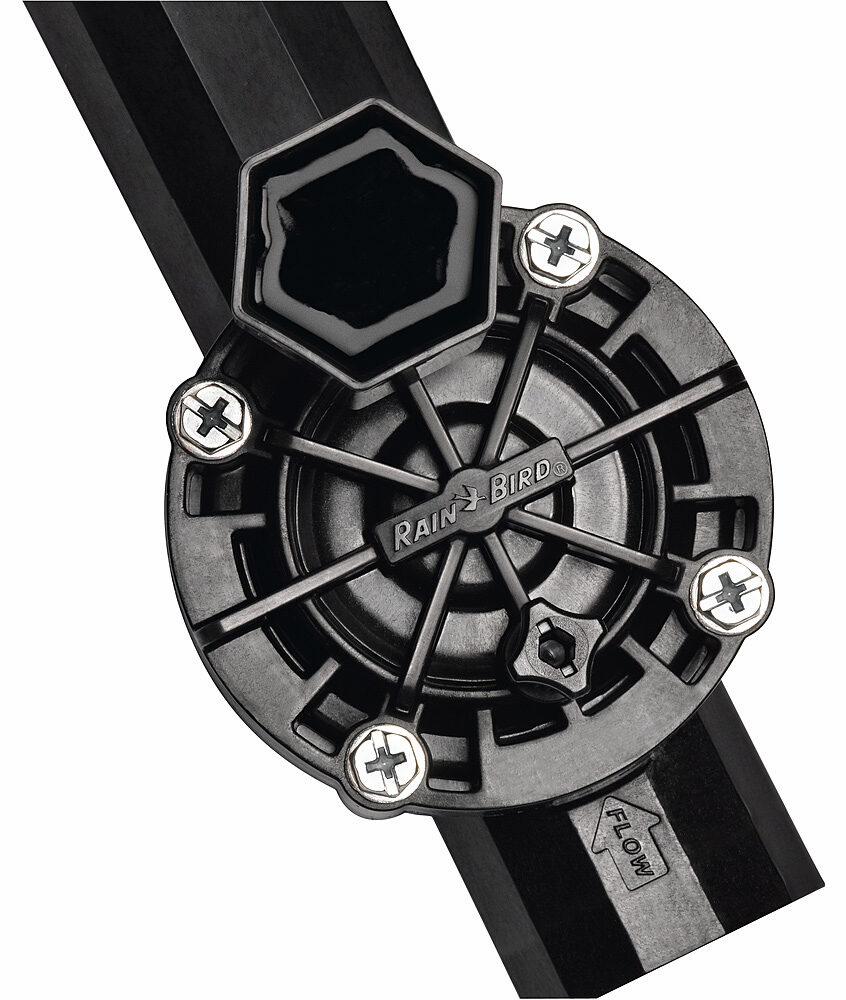

Unique, easy-to-turn, pressure-assisted flow | Compact design, 2.54” spin radius for tight installations | Buna-N diaphragm with self-cleaning 90-mesh (200 micron) pilot water filter and stainless steel spring | Four screws for quick access to diaphragm | Your choice of tools to open valve (nut driver, Phillips head screw driver, slotted head screw driver) | Reverse flow normally closed design | Eccentric diaphragm for smooth closing, less water hammer | Balanced-pressure diaphragm for long life | Internal bleed for spray-free manual operation | Diaphragm locating post for positive installation | External bleed to manually flush system of dirt and debris during installation and system start up | Available in multiple fitting types | Trouble-free service with few parts | Glass-filled polypropylene body for strength | Double-filtered pilot flow for maximum reliability | Captive multi-drive screws for ease of access | Operates in low-flow and Xerigation® applications when the RBY filter is installed upstream
Manufacturer Product Page: https://store.rainbird.com/100hvnpt-1-in-hv-series-inline-sprinkler-valve-female-x-female-threaded.html | Manufacturer Web Site: https://store.rainbird.com/ | Brochure: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSa21b8dde-457e-4049-91da-fa2ed4a1a516 | Product Maintenance: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS68e6bf0e-994a-4be3-84c5-27878c6b0839 | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS3812ad48-894e-4bf9-a651-4b689311eabd | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSd71cd7fb-dff9-48cb-a9f1-e93ffdd0c7fa | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS0804c54a-f1f5-4d9a-ae5a-0a8daad7d75e | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS3997cd52-9130-46dd-89e8-f8bce69caaec | Parts Breakdown: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSf86c9068-7f79-4f1e-b1a9-c10b85fa41e2 | Manufacturer Web Site: http://www.rainbird.com
