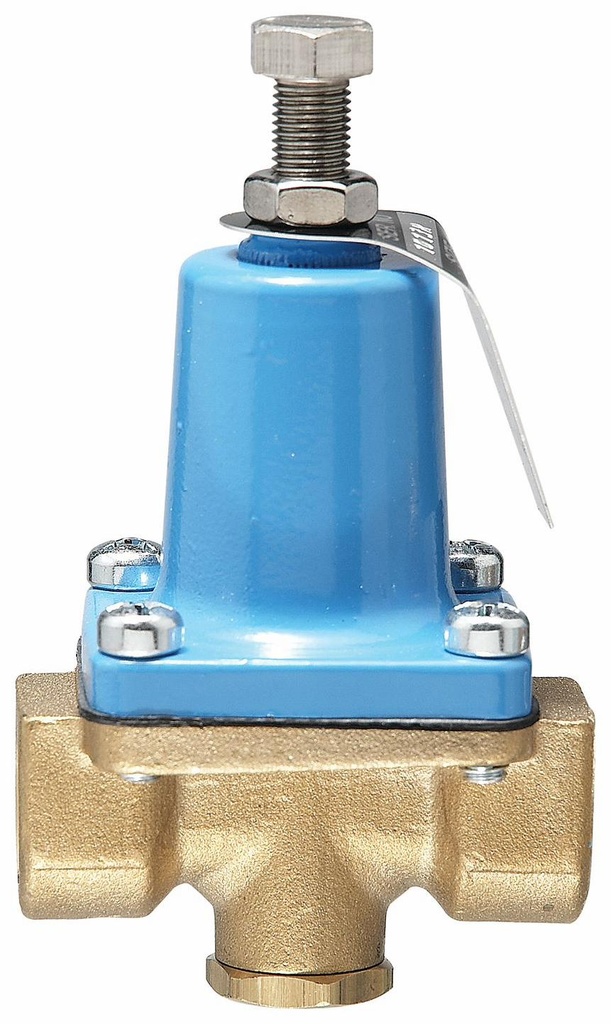

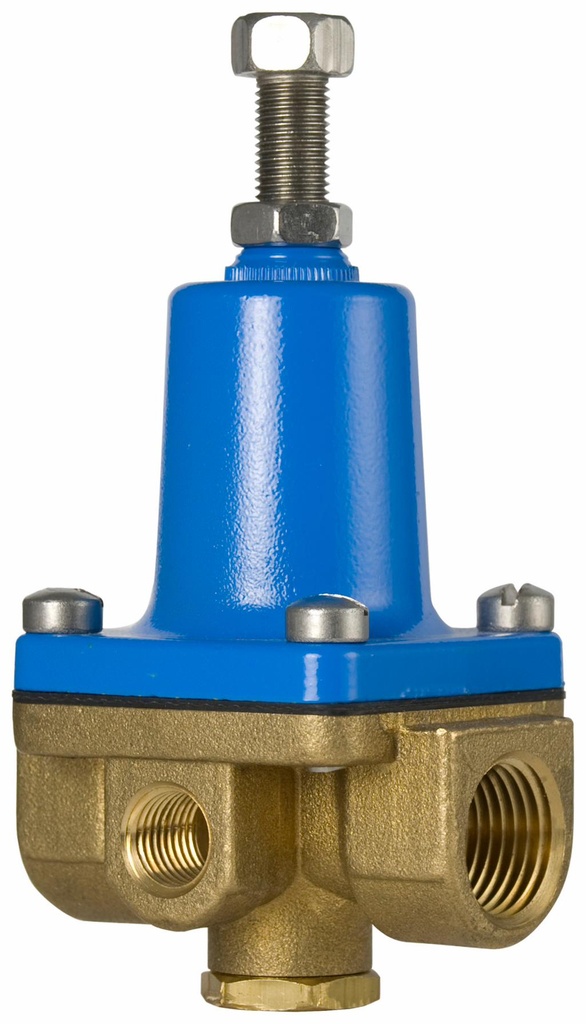

This 1/2 inch lead free small water pressure reducing pilot is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It has an oversized orifice and is ideally used on beverage dispensing and paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. It consists of a lead free brass body with an adjusting tee handle, NPT threaded female connections, three-way low water pressure gauge port, aluminum spring cage, Buna-N stainless steel disc, and a reinforced Buna-N diaphragm. The reduced water pressure range is 20 to 175 psi (1.4 to 12.1 bar) and is factory set at 75 psi (5.2 bar).
Oversized orifice | Stainless steel stem and spring | Tee handle adjustment | Lead free brass body construction
Manufacturer Web Site (French): https://fr.watts.ca | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS50b42dcf-cad9-4525-8fcc-bf5e2194cfa0 | Manufacturer Web Site: https://www.watts.ca | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSa5fc5de9-64be-4048-acb1-07b63144424d | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSfbdb945c-7213-4d8c-9390-189cf2839c94 | Warranty: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS8e1417d7-8d31-4bfb-9017-f25e33e3175a | Manufacturer Web Site: http://www.wattscanada.ca
