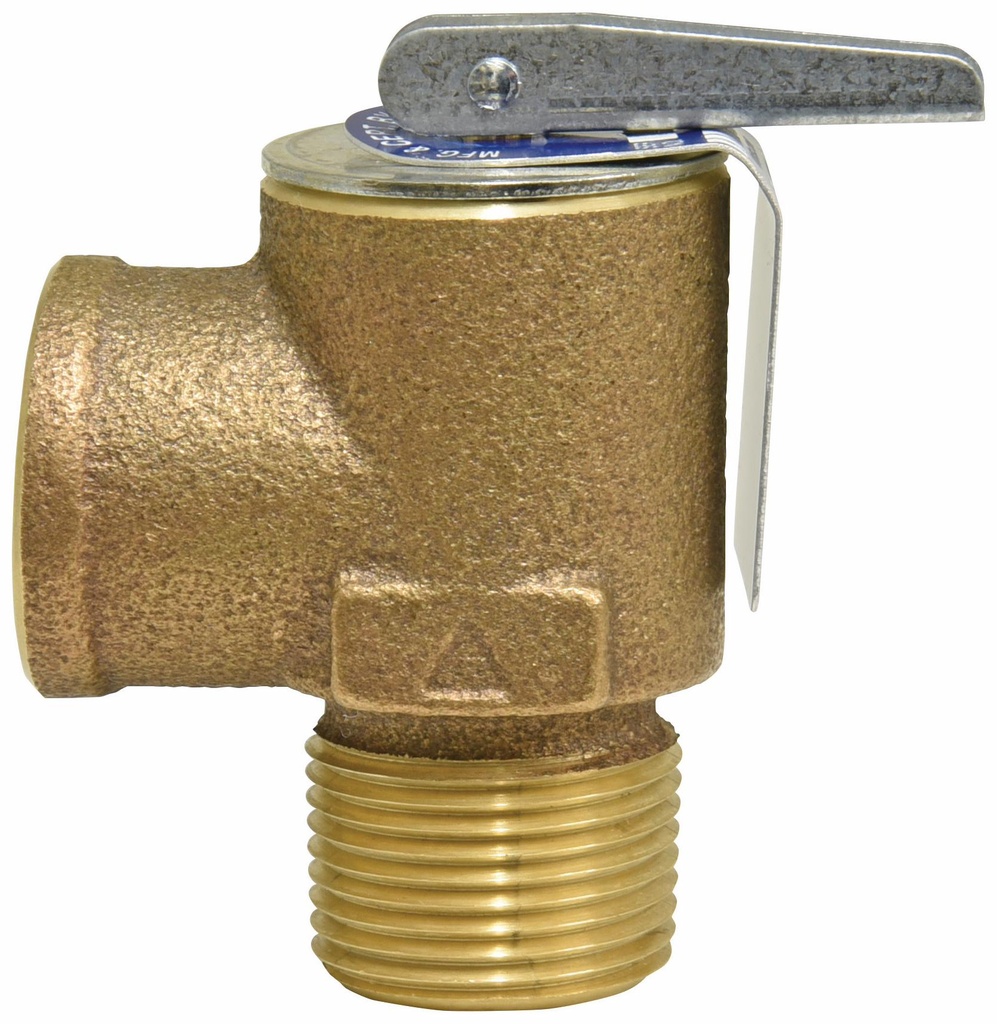

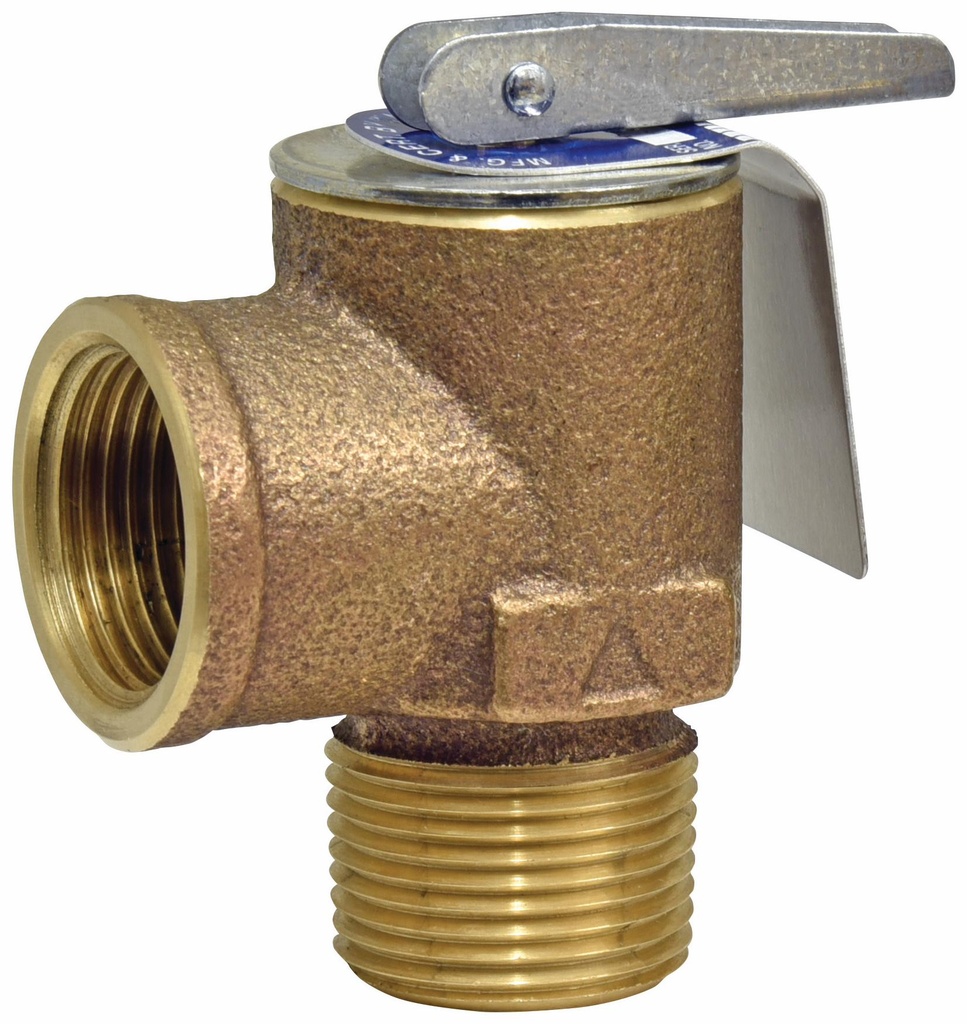

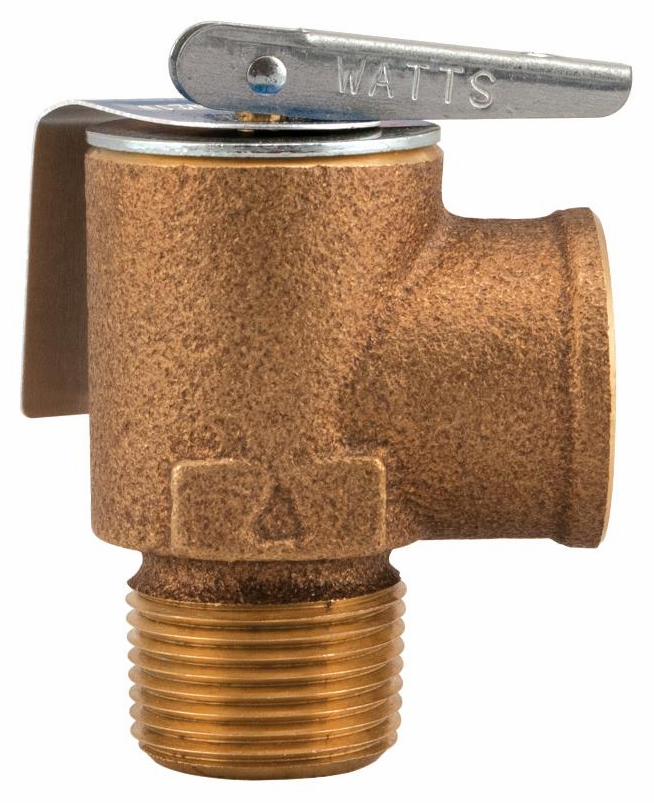

This 3/4 inch pressure safety relief valve is used in commercial and industrial applications for low pressure, steam heating boilers and process equipment. It consists of a bronze body construction with NPT threaded male inlet and threaded female outlet (drain) connection, a top-guided stem, stainless steel spring, and a non-stick Teflon (R) disc-to-metal seating. The pressure relief is set at 30 psi (2.1 bar).
Seat located above drain | Positive shut off | ASME Section IV at 30 psi set point | High heat resisting silicone disc
Manufacturer Web Site (French): https://fr.watts.ca | Manufacturer Web Site: https://www.watts.ca | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS7289695f-e0d7-4e08-a518-2da090d91daa | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS46cdcf47-6368-4dc8-8356-fa93175cede1 | Warranty: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS8dc5c0cc-71fc-45d3-9442-eed8b23d5da2 | Manufacturer Web Site: http://www.wattscanada.ca
