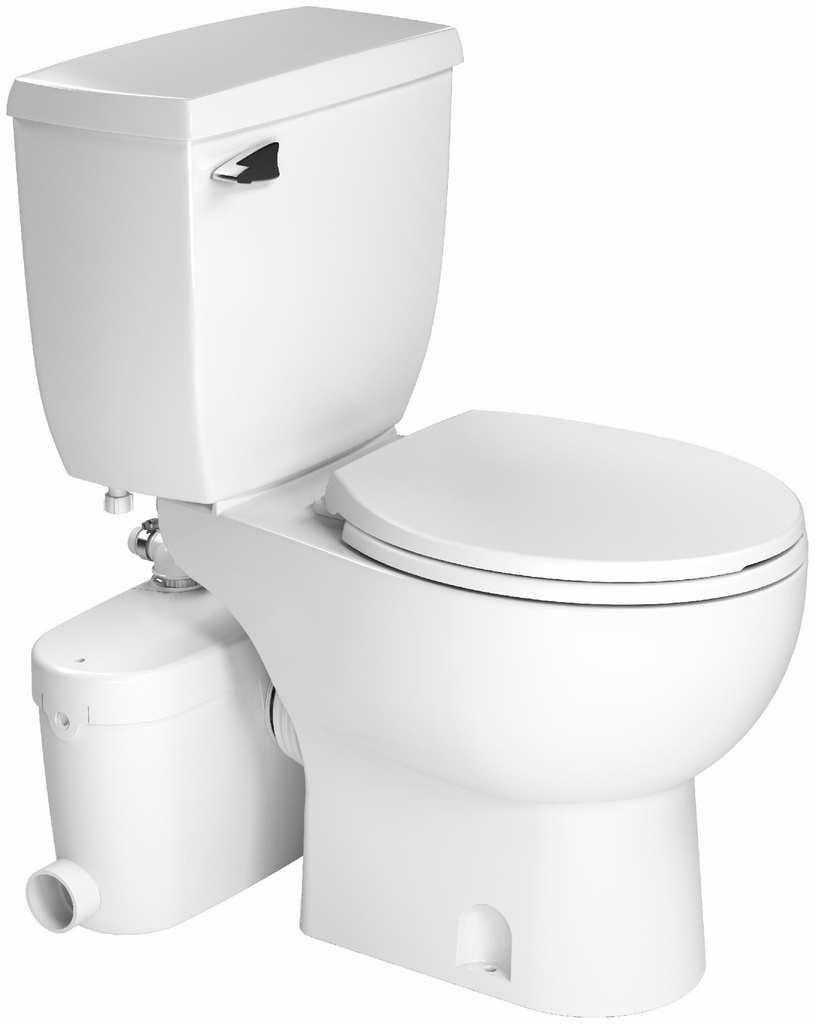

This SaniAccess3 is a complete system with pump, tank, and round bowl (does not include extension pipe). The Saniaccess3 is a system that is used to install a complete bathroom up to 15 ft. below the sewer line, or even up to 150 ft. away from a soil stack. The Saniaccess3 is simplicity itself to install; there are just four connections. The macerator/pump is connected to the spigot of a horizontal rear discharge toilet. The toilet tank is connected to the water supply. The macerator/pump is connected to the small diameter discharge pipe work. The macerator/pump is connected to the electrical supply.

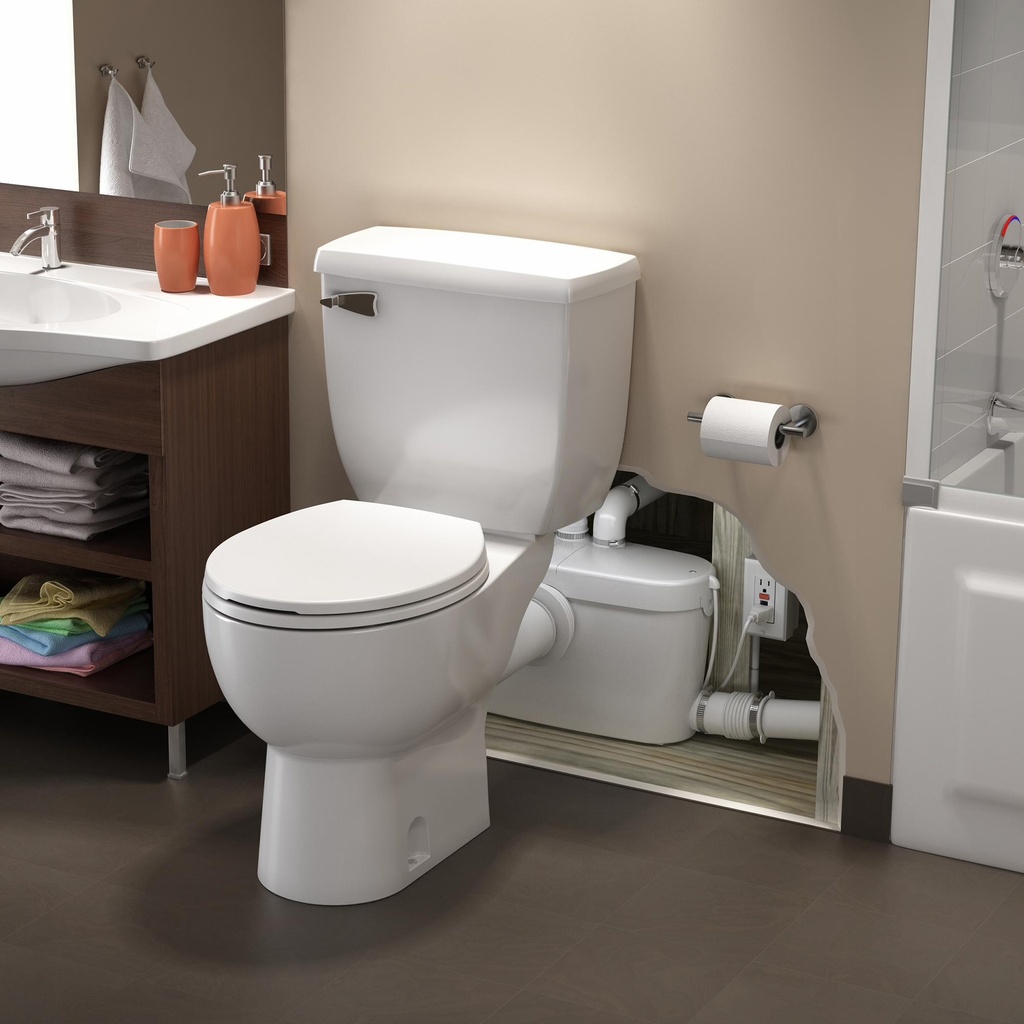

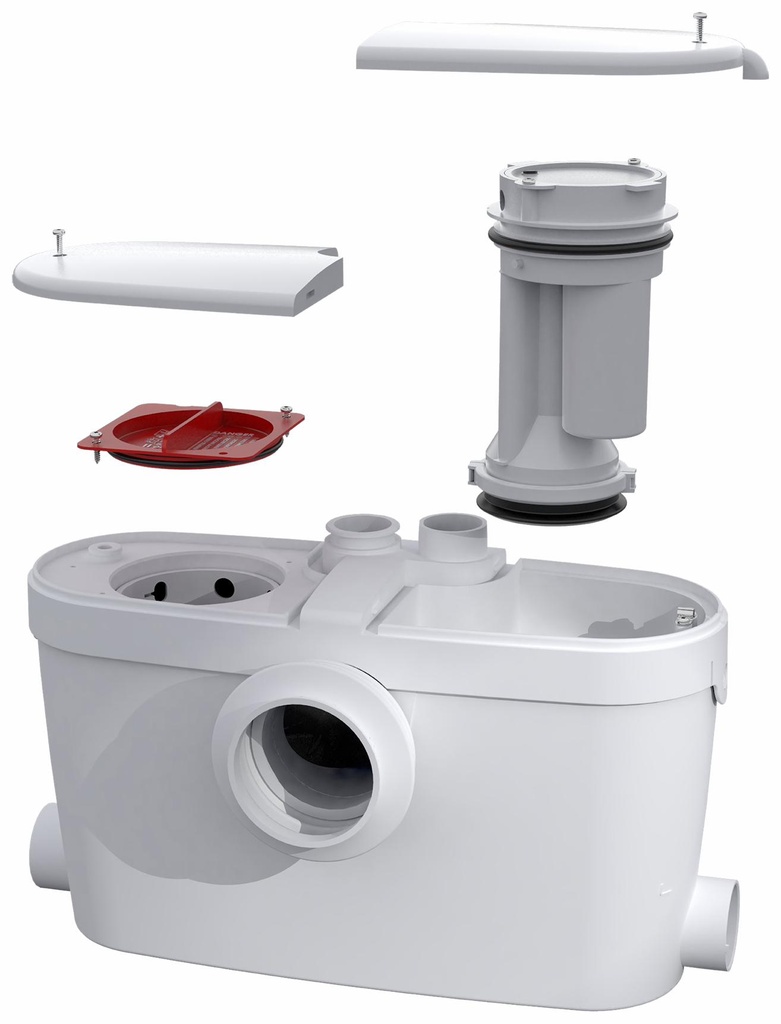

Sold separately Saniflo Extension Pipe 030 Internet# 204253704 | Discharge rate at 15 ft.: 17 Gal. / minute | WaterSense | Discharge: vertically to 15 ft. (4.6m), horizontally to 150 ft. (50m) | When the flush is activated, the water flowing into the Saniaccess3 activates a micro switch in the pressure chamber, which in turn starts the motor | Inside of the unit comprises of a pressure chamber, which starts and stops the unit, and the motor, which drives the stainless steel macerator blades and the pump | System uses much less water than a regular toilet | An optional extension pipe (030) is available for the pump to be installed behind the wall | Discharge rate at 3 ft. : 27 Gal. / minute
Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSfe14cb0d-4010-45b8-a853-af8caf4040b3 | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSad19f7fa-1764-422a-a7b3-2e118e162809 | Brochure: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSb9ff10bc-c056-4107-b78d-714585163f7b | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSfea53bcf-523d-4457-8852-814b1538066f | Specification Sheet (French): https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSba168180-99ea-4cad-9fbb-a4f69ed55444 | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS510985a9-d840-44e7-ad22-9254e789e61c | Manufacturer Product Page: https://www.saniflo.ca/en/installing-a-toilet/68-saniaccess-3.html https://www.saniflo.ca/en/accessories/227-round-and-elongated-rear-discharge-toilets.html
