8X3/4 CC-DS SADL 8.62-9.62 2408
SKU: 7679203

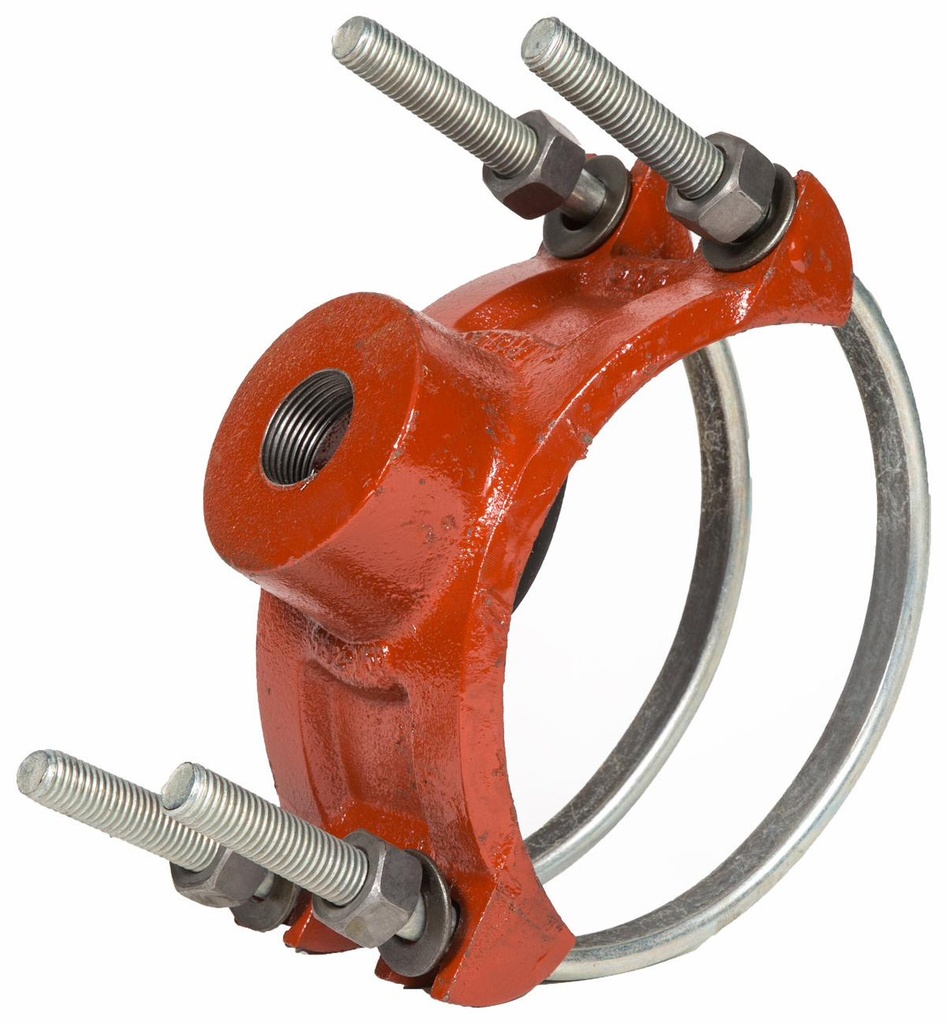

ROBAR 2408 Service Saddles are used to take a service outlet off a transmission or distribution line. Recommended for use on Ductile Iron pipe and Steel pipe. Not suitable for Plastic pipe. Comes with shop coat and low alloy steel straps. Designed for tapping into Steel, Ductile Iron and Cast Iron pipe. Saddle straps and bodies are shaped to evenly and safely distribute the clamping load to the pipe. When tightened, they conform to the various diameters in each nominal size of pipe within specified working range.
Working pressures up to 350 PSI for sizes 4” to 16” | Coating: 2408 – Two coats of Enamel | Fasteners: 5/8” NC HSLA. Zinc plated | Torque: 70-80 ft. lbs. | Saddle Body: Cast Ductile Iron body | Saddle Straps: 5/8” NC Low Alloy Steel, U-bolt | Gaskets: Nitrile (NBR) Rubber (Other compounds available)
Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSc853ddaa-28c7-4fa8-a64a-705694a6560e | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSc057e632-7168-4a92-a5e0-9391beeea32a | Manufacturer Web Site: http://robarindustries.com
